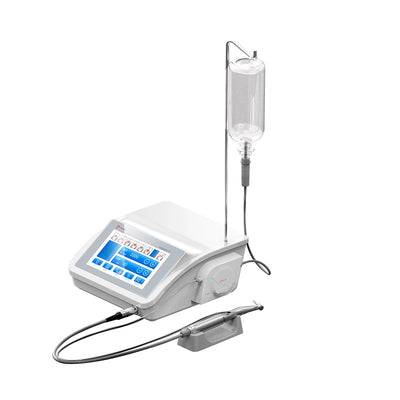

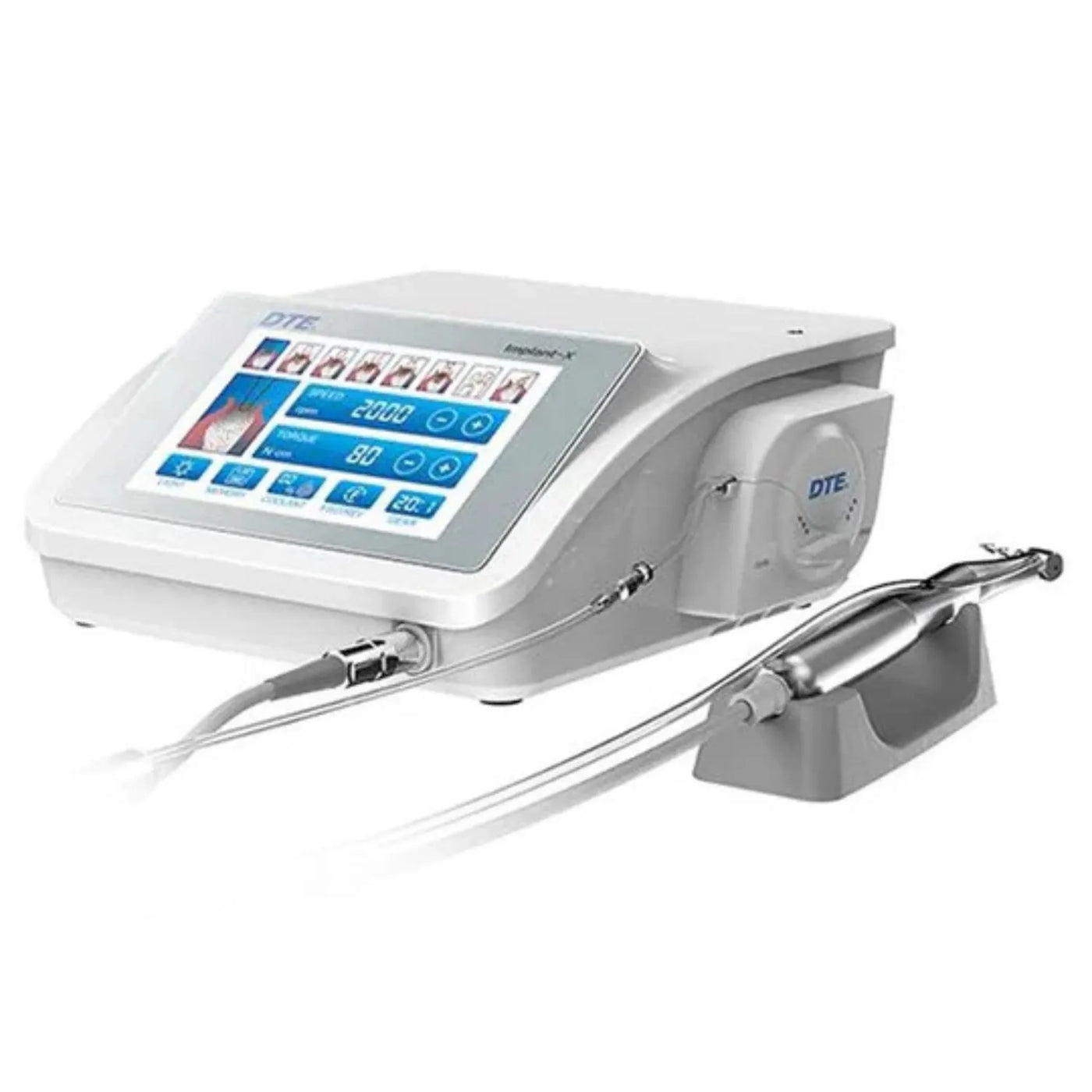

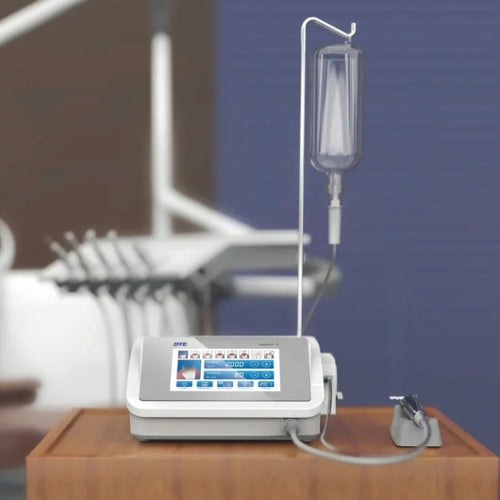

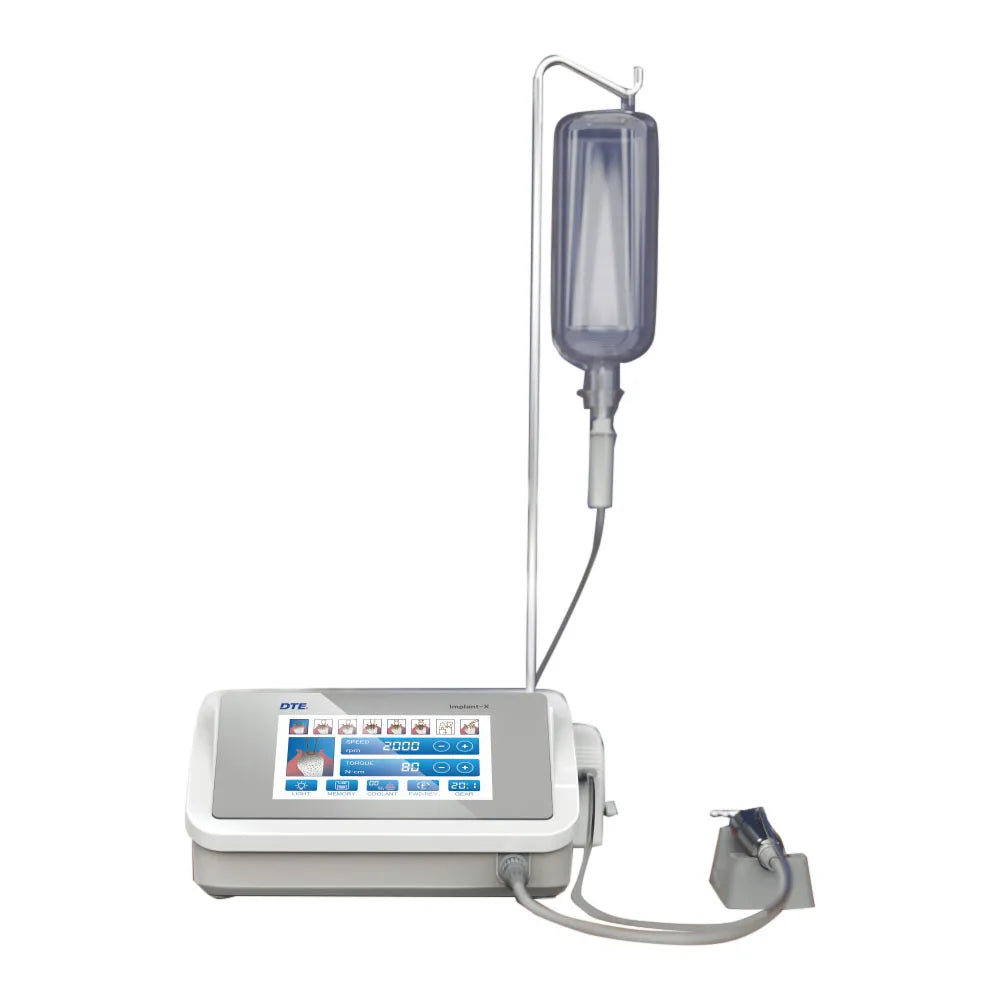

DTE Woodpecker Implant X Motor with LED Handpiece

DTE Woodpecker Implant X Motor with LED Handpiece | VSDent

Dental implanters are used for high-precision dental implant treatments. Offering the dentist precise control over torque and speed to improve accuracy. A premium, silent Swiss motor that is comfortable for the patient and the dentist.

• Complete set with LED handpiece
• External and internal irrigation
• Automatic overload protection function
• Motor and cable autoclavable
• Motor auto-calibration function
• Ergonomic multi-functional foot controller

Technical Specifications:

• Handpiece rotation speed range: 300–40000 rpm
• Torque range/gear: 20:1 5 Ncm to 80 Ncm
• Max pump output: 110ml/min
• Main unit dimensions: 276mm x 267mm x 10mm
• Motor weight: 140g
• Power supply: Ac220v 50/60Hz
• Tail cord length: 1.8m
• Foot pedal tail cord length: 2.8m
• Autoclavable temperature: Up to 135°C/275°F

Certification & Warranty:

• FDA certified
• 24-month warranty on the main unit
• 12-month warranty on DTE contra angle, cable & motor

Packaging includes the following:

•  1 x Control unit
•  1 x Irrigant support
•  1 x Universal support
•  1 x Main cable
•  5 x Disposable irrigation tubings
•  1 x Electric motor compatible with NSK connection with 1.8 meter long cable
•  1 x Cable foot control

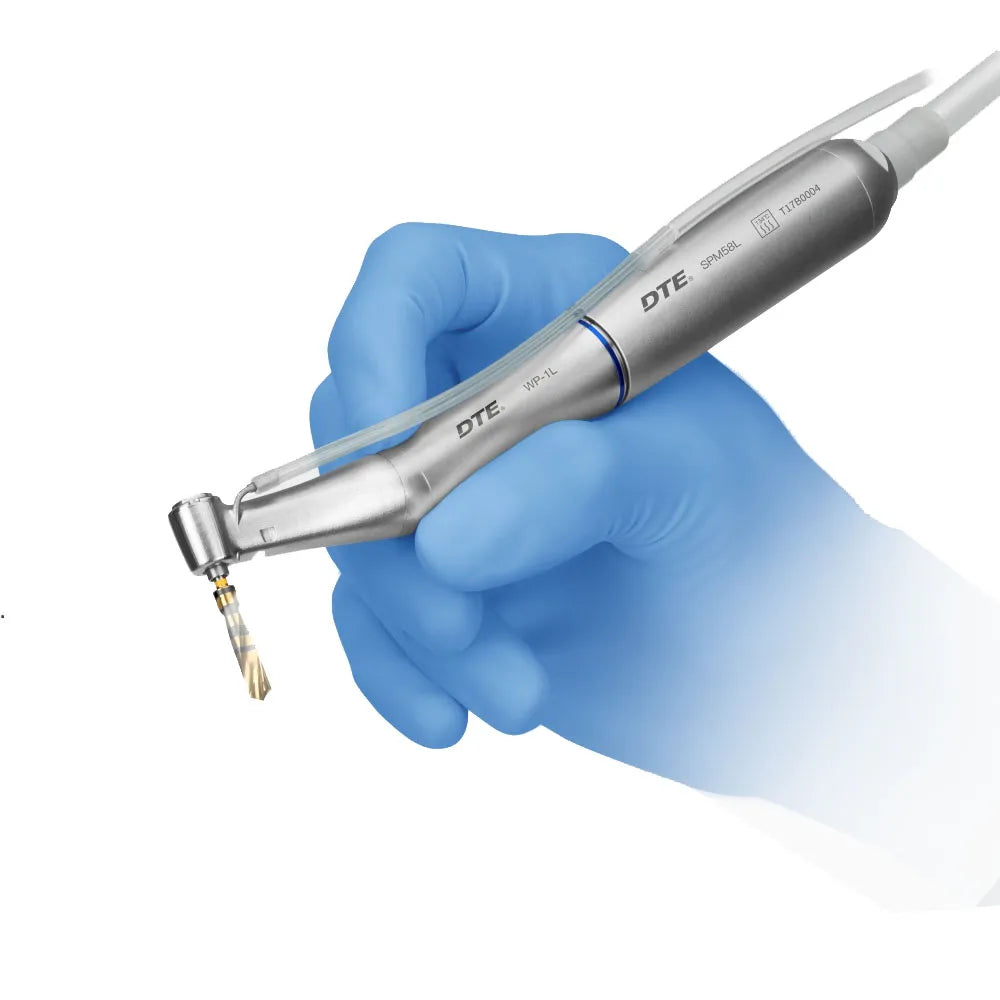

•  1 x 20:1 Surgical contra-angle handpiece

Installation video:
